ANSA bottle unscramber machines are designed primarily to fit into pharmaceutical, food and cosmetic production lines. they are aimed at today's ever changing market place that requires versatile equipment able to adapt to numerous size changes and offer gentle handling of
containers within a single compact system.
The ANSA bottle unscrambler is a simplistic approach to container handling along with rapid change over time incorporating latest PLC technology. It will fill the need of even the most demanding customer.

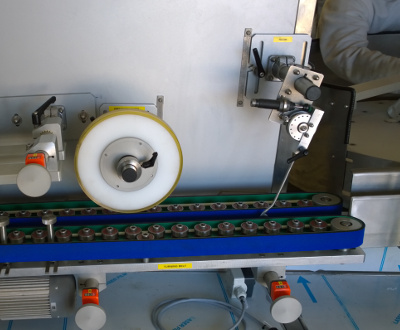

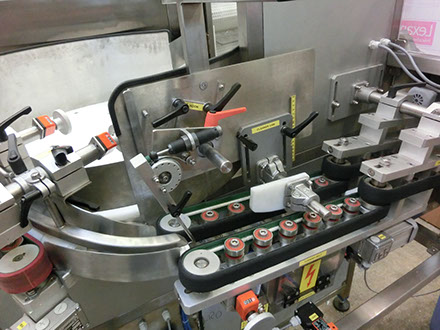

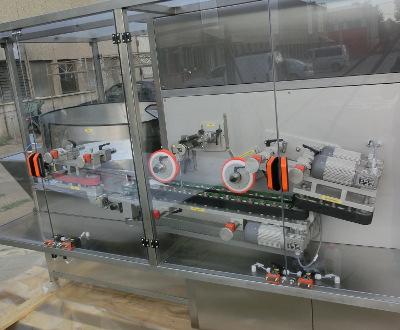

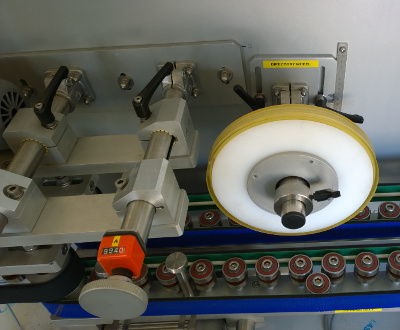

ANSA 800 - 1000
- maximum speed: 150 bpm / 250 bpm
- maximum bottle diameter: 80 mm / 120 mm
- maximum bottle height: 150 mm / 200 mm
Dimensions:
- width: 1750 mm / 2600 mm
- length: 1180 mm / 1360 mm
- height: 1700 mm / 1800 mm
Optional packages: air cleaner, orientor, extended hopper

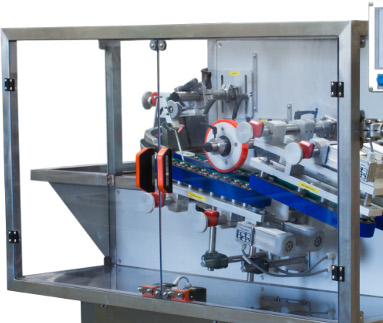

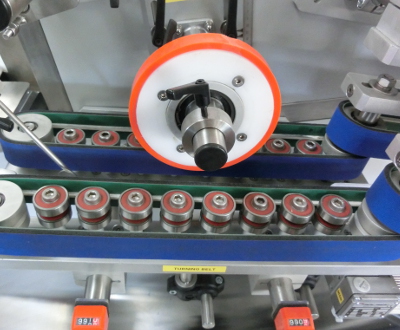

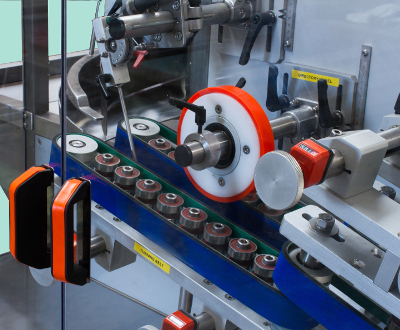

ANSA MICRO 600
- maximum speed: 120 bpm
- maximum bottle diameter: 55mm
- maximum bottle height: 120 mm
Dimensions:
- width: 1100 mm
- length: 1200 mm
- height: 1500 mm
Optional packages: air cleaner, orientor
Click to see more

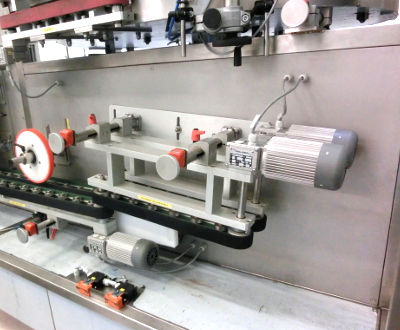

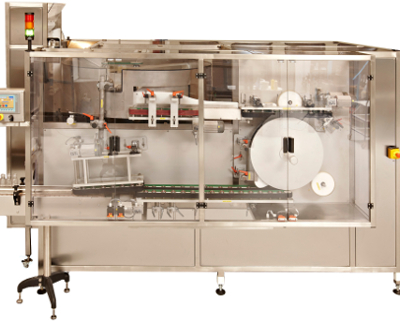

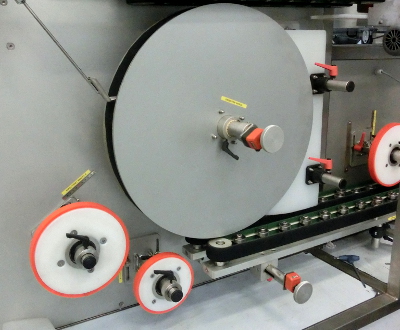

ANSA 1200 - 1400
- maximum speed: 250 bpm
- maximum bottle diameter: 160 mm
- maximum bottle height: 200 mm
Dimensions:
- width: 2550 mm / 2550 mm
- length: 1500 mm / 2040 mm
- height: 1900 mm / 1900 mm
Optional packages: air cleaner, orientor, extended hopper
Click to see more

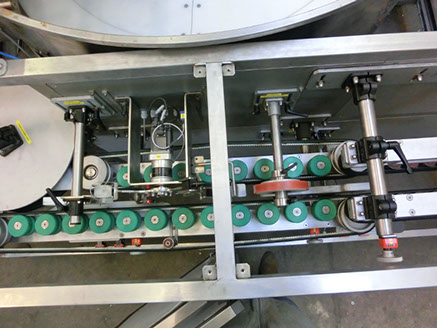

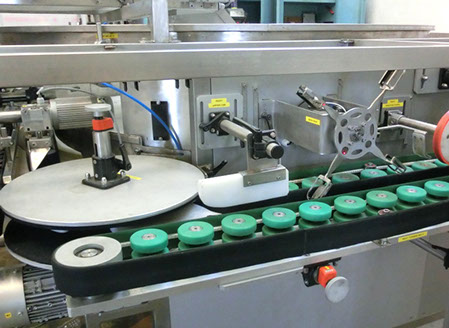

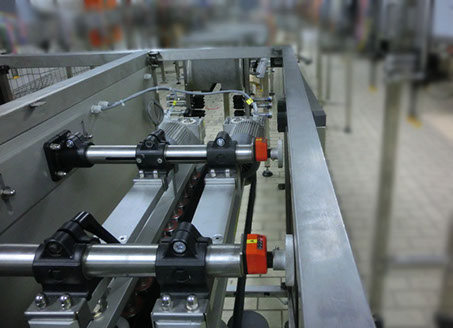

ANSA 1800 - 3000
- maximum speed: 500 bpm
- maximum bottle diameter: 300 mm
- maximum bottle height: 400 mm
Dimensions:
These models are highly flexible and optimised for your needs, so please contact us for more information
